Le Commodo de signalisation |
![]() |
|||||||
| |||||||||
LE COMMODO DE SIGNALISATIONLe commodo situé derrière le volant forme un ensemble constitué de 3 unités distinctes : le levier de gauche qui actionne le klaxon, les clignotants et l'appel de phare, le bouton qui actionne l'allumage des phares et le levier de droite qui actionne les essuie glaces. |
Le levier de clignotant constitue la partie principale, référence : Lucas Column Switch SQB803. c'est sur cette partie que viennent se fixer : | ||||||||

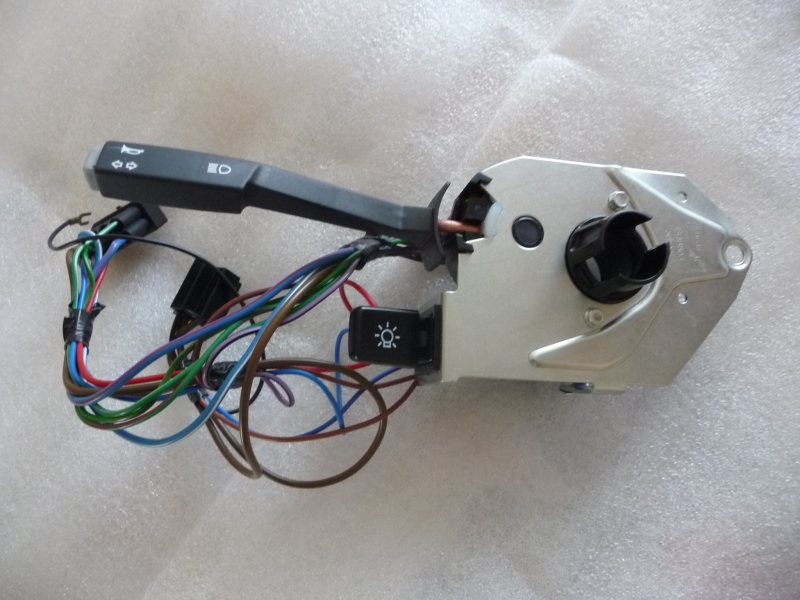

![]() Indicator lever cluster Lucas SQB803 |

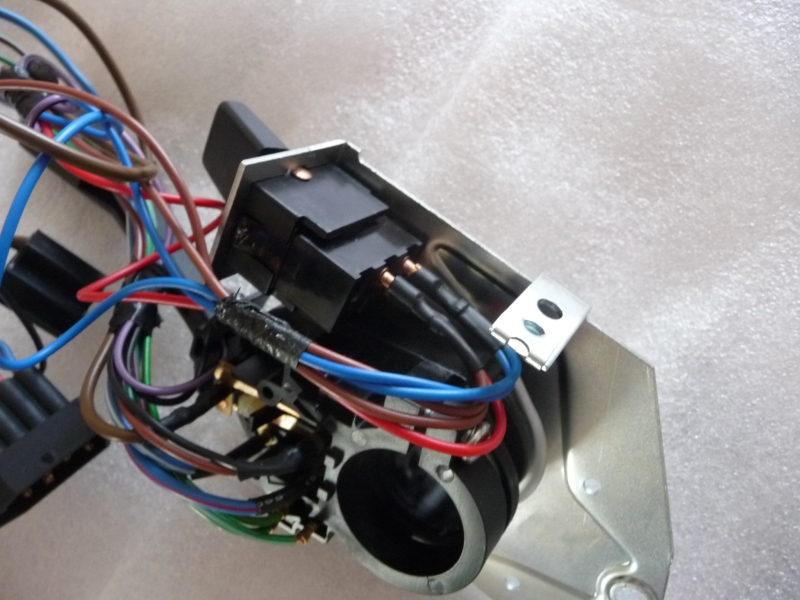

![]() View of the main light switch |
||||||||
---|---|---|---|---|---|---|---|---|---|

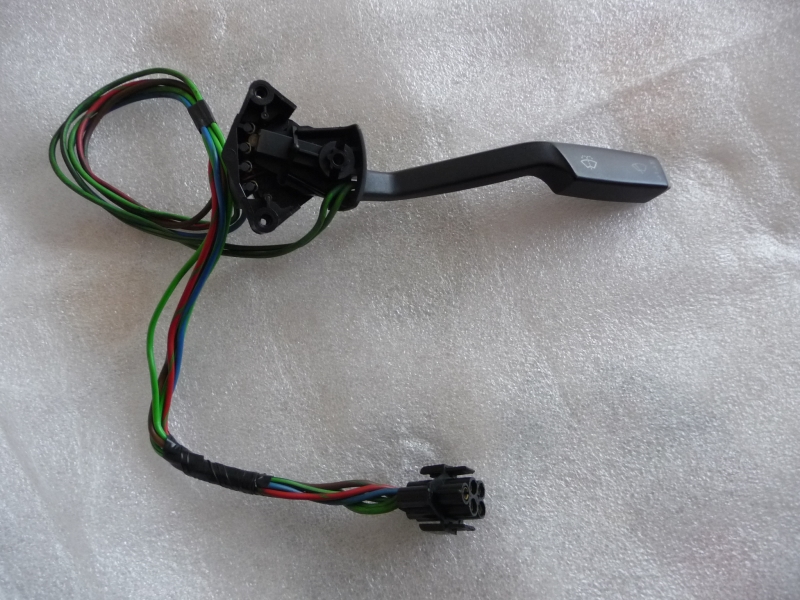

![]() Wiper stalk Lucas SQB121 |

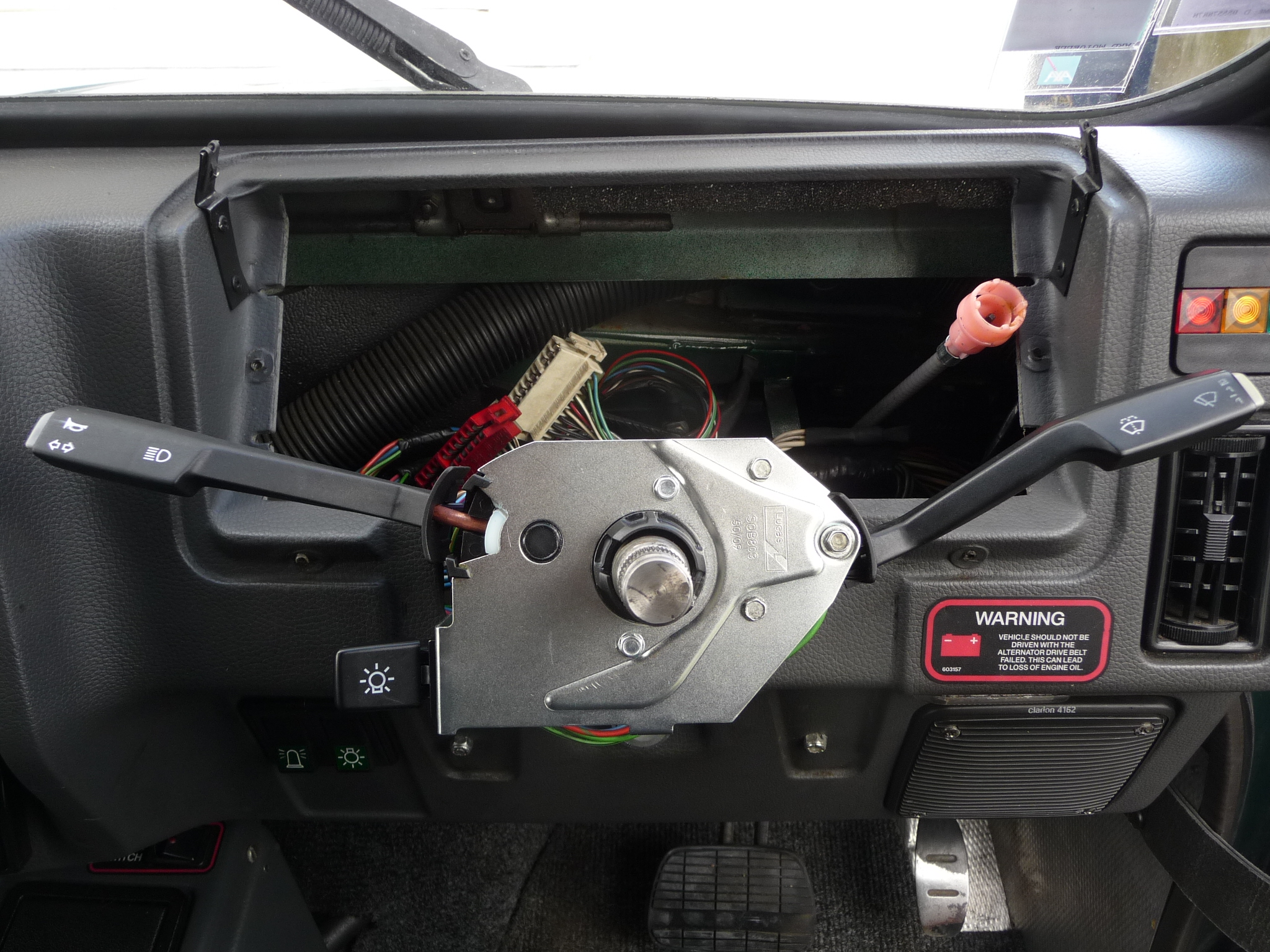

![]() Indicator lever, light switch and wiper stalk on steering column |
||||||||
COLUMN INDICATOR CLUSTERThe indicator stalk cluster behind the wheel consists of three separate units: the left hand lever which activates the horn, turn signals and high beam, the button that activates the headlights and the right hand lever that activates the wipers. |
The lighting and indicator lever is the main component, reference: Lucas Column Switch SQB803. It is on this part that are fixed: | ||||||||
COMMENT REMPLACER LE COMMODO |
HOW TO REPLACE THE COLUMN INDICATOR CLUSTER |
||||||||
![]() |
![]() | ||||||||
Carefully prize out centre pad and unscrew retaining nut. |
Remove four screws and remove top cover from multi-switch. | ||||||||
Soulevez soigneusement la plaque du centre et dévisser l'écrou de retenue. |
Dévissez les quatre vis et enlevez le couvercle supérieur du commodo. |
||||||||
![]() |
![]() | ||||||||
Slacken clamping screw to remove indicator cluster. |
Remove four retaining screws and lift binnacle cover from fascia. | ||||||||
Desserrez la vis de serrage desserrer pour enlever le commodo. |
Dévissez les quatre vis de fixation et soulevez le couvercle du compteur. |
||||||||
![]() |
![]() | ||||||||
Remove fixing screws, pull binnacle forward from fascia location |

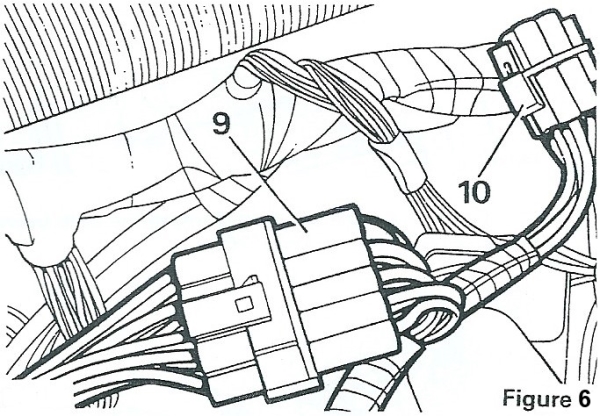

Disconnect multi-switch wiring plug. | ||||||||
Retirez les vis de fixation, tirez le compteur vers l'avant de son habitacle |
Débrancher la prise de câblage du commodo. |
||||||||
OU ACHETER LES PIECES DETACHEES |
WHERE TO BUY THE SPARE PARTS |
||||||||
Headlamp Switch DRC1424P | |||||||||
Lucas column switch SQB803 | |||||||||
